Product Details

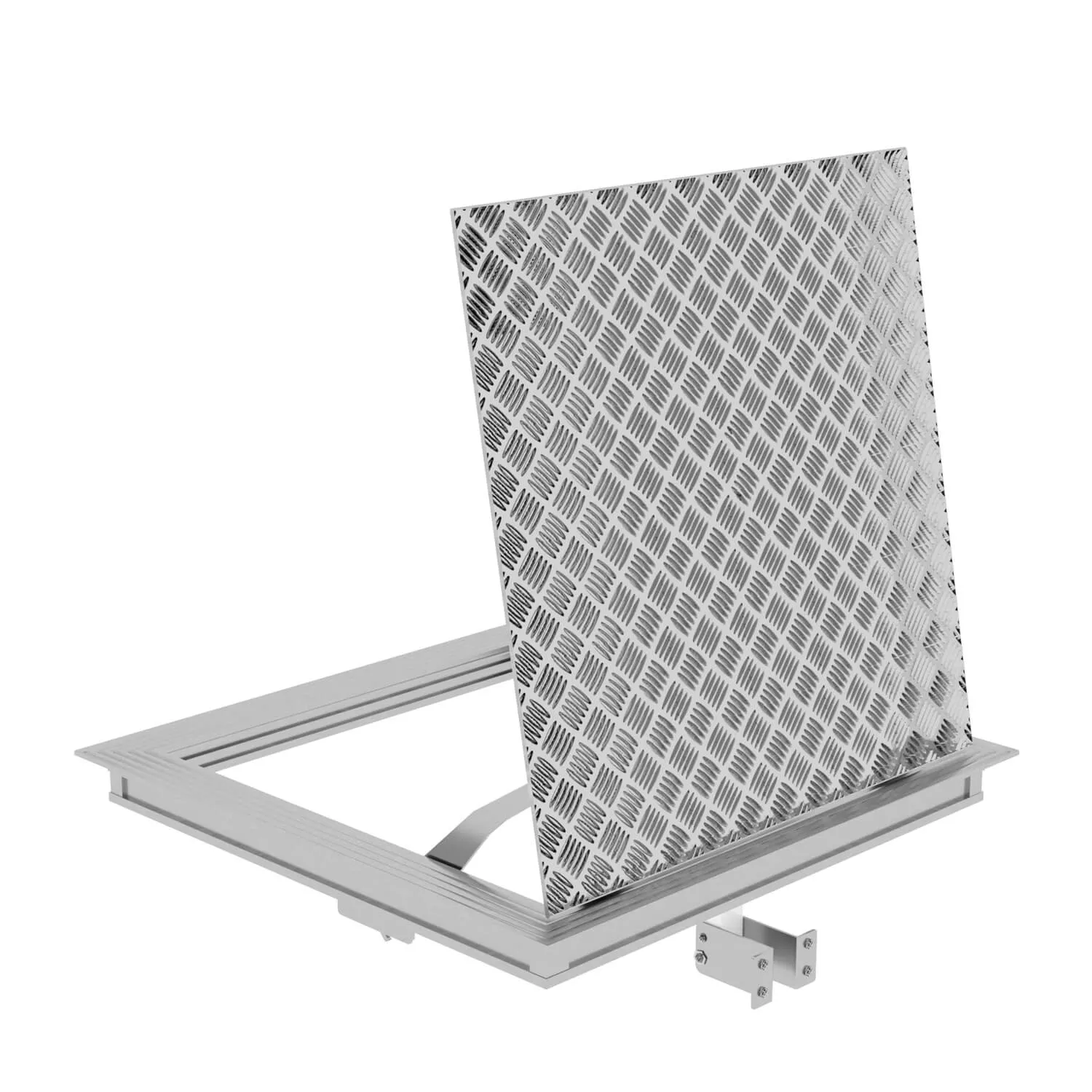

Internal Access Hatch

  • Custom made to any size
  • Patterned tread plate lid
  • Marine grade aluminium cover
  • Maximum opening 90°
  • L03 standard tee lock
  • Rw25dB acoustic rated
  • Gas spring assisted operation
  • Hold open stay – against accidental closure

Product Code


MATERIAL:           Cover and frame manufactured in Aluminium.
COVER: Tread plate lid. The range is available with pedestrian rating FACTA Class A loading.
FRAME: Patent marine alloy frame.
HINGES: Unique hidden hinge to help prevent the ingress of dirt and moisture.
LOCKING: The lid is held shut by a heavy duty stainless steel cab lock and in the interest of safety is capable of opening from both sides, with tee key operation from above. The lid will have the provision to lock in the open position with a safety hold open stay to prevent against accidental closure.
LIFTING:  The cover includes grade 316 stainless steel gas spring assistance. This is essential where weights of the unassisted covers exceed the recommendation of the manual handling operations regulations 1992, which implement the European directive 90/269/EEC.
FINISH: Self colour as standard with polyester powder coating to any standard stocked RAL colour as an additional option.
