Product Details

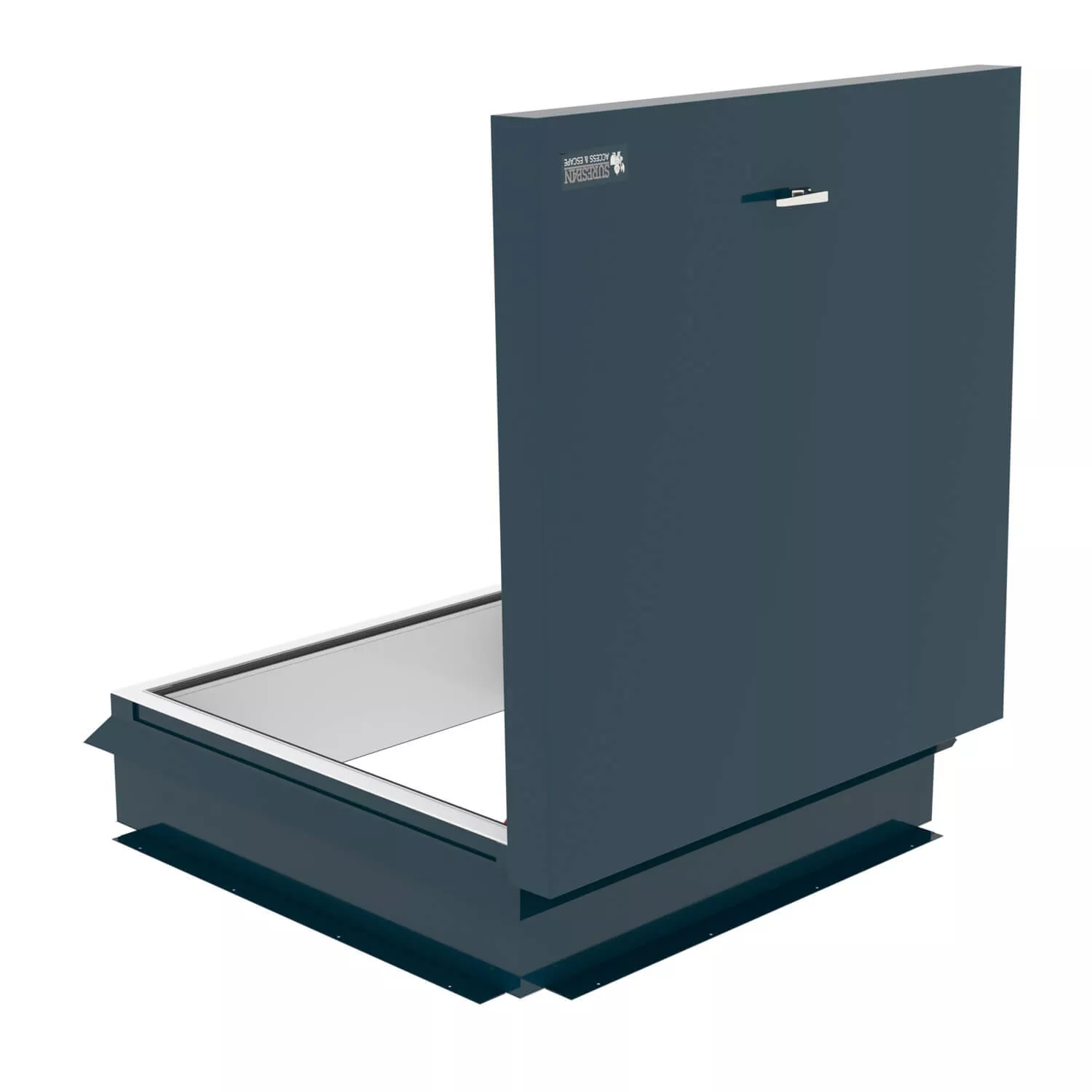

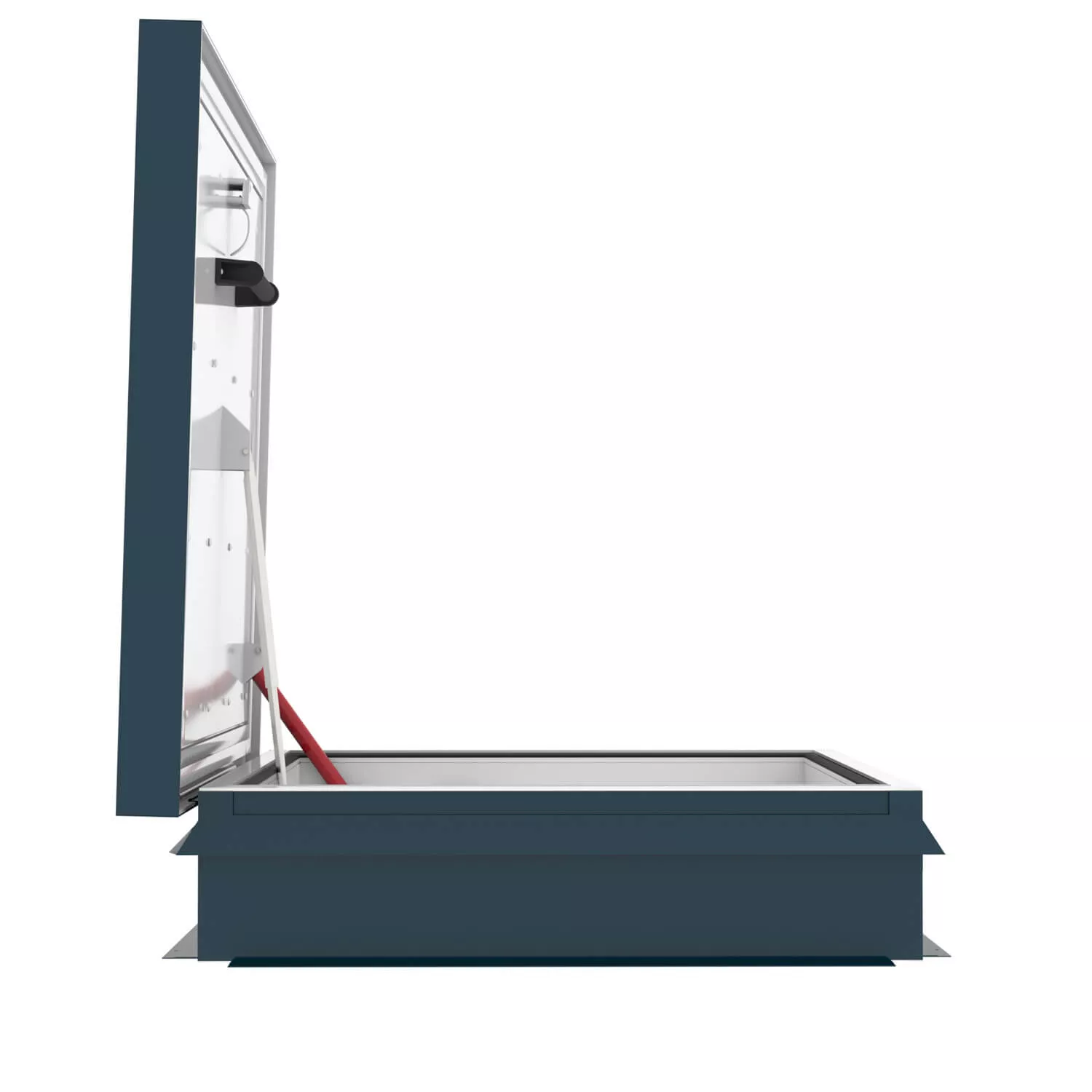

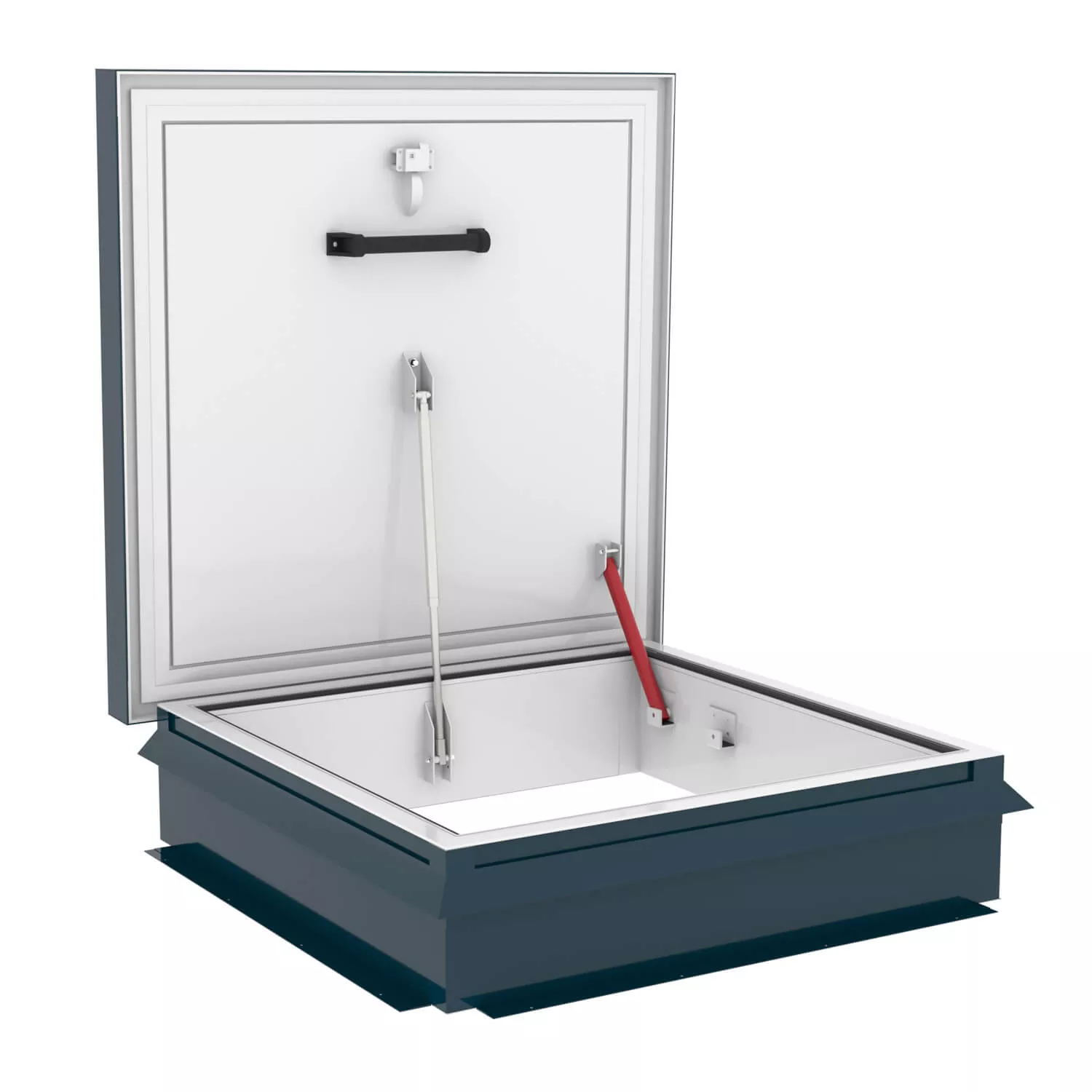

Fire Rated Roof Hatch

  • Thermally broken lid and upstand
  • External curb liner fitted as standard
  • Fire rated up to 240 minutes. Tested to EN 1634-4.
  • UL-EU certified up to 4 hours.
  • Gas spring assisted opening to 85°
  • Double unbroken EPDM seal
  • Single or twin colour polyester powder coating
  • 50mm PIR insulation (0.43 W/m²K) as standard. Mineral wool insulation (0.63 W/m²K) available at no extra cost.

Product Code


FIRE RATING:           Fire rated up to 240 minutes. Tested to EN 1634-4 and UL-EU certified.
MATERIAL:           Cover and frame 2mm Aluminium with steel cladding to underside of lid.
COVER:           Fully thermally broken and insulated lid.
UPSTAND:           300mm in height with external curb liner, thermally broken and insulated.
INSULATION:           50mm PIR Insulation achieves 0.43 W/m²K as standard.
SEAL:           Double unbroken bubble and blade seal to lid.
OPERATION:           Gas spring assisted opening. Electric available on request.
HINGES:           Heavy duty continuous hidden hinge.
LOCKING:           Cablock with internal padlockable toggle latch and an external padlockable handle (LO4 as standard – See locking options tab)
FINISH:           Mill finish aluminium, single or two colour powder coating optional.
